】 is equipped with dual-channel DDR4 which supports up to 64GB of memory in total.support 2 different types of storage expansions—M.2 2280 PCIe SSD Slot×1 and 2.5 inch SATA HDD Slot×2, you can expand the content easily according to your needs.

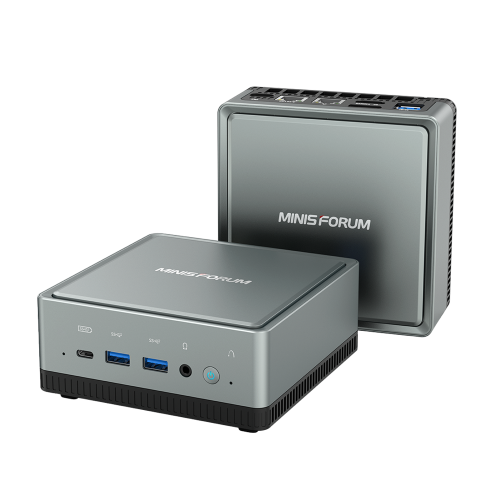

【Performance Over Edge】Deskmini U820 is powerful minis which come with the Intel Core ™ i5 8279U processor up to 3.80GHz, 4 cores 8 threads, total cache 6MB, equipped with Intel®Iris®Plus Graphics 655(300MHz-1.05GHz) .
【Upgrade-Friendly】Deskmini U820 is equipped with dual-channel DDR4 which supports up to 64GB of memory in total.U820 also support 2 different types of storage expansions—M.2 2280 PCIe SSD Slot×1 and 2.5 inch SATA HDD Slot×2, you can expand the content easily according to your needs.
【Triple Screen Display】U820 drives up to three independent displays with incredible clarity and maximum productivity in your workflow with excellent triple display solutions using HDMI, DisplayPort as well as USB-C output.
【VESA Bracket & Portable】The small Mini PC is equipped with a mounting bracket in the package, which can be easily fixed on the back of the monitor to save a lot of space, super space-saving!
| Processor | Intel® Core™ i5-8279U Processor, 4 Cores/8 Threads (6M Cache, up to 4.10 GHz) |
| GPU | Intel® Iris® Plus Graphics 655(300MHz- 1.15GHz) |
| Memory | DDR4 Dual channel (SODIMM Slots×2) |
| Storage | M.2 2280 PCIe SSD |
| Storage Expansion | 2.5 inch SATA HDD Slot×2 (SATA 3.0 6.0Gb/s) |
| Wireless Connectivity | M.2 2230 WIFI support (Dual-Band Wi-Fi，BlueTooth) |
| Video Output | ① HDMI (4K@30Hz) , ② DisplayPort(4K@60Hz) , ③ USB-C Port(4K@60Hz) |
| Audio Output | HDMI , DisplayPort , 3.5mm Audio Jack |
| Peripherals Interface | RJ45 Gigabit Ethernet Port×1 , RJ45 2.5 Gigabit Ethernet Port×1 , USB 3.0 Port×4(Gen1 Blue) , USB-C Port×1(Full Featured , In Front) , USB-C Port×1( Power Supply Only , The Back) , Clear CMOS |
| Power | DC 19V (adapter included) , via USB-C |
| System | Windows 11 Pro |
Q1. How many monitors does U820 support?
A: Hi, U820 can connect with 3 monitors at the same time.
Q2. If it comes with a wall mount?
A: Hi, yes. U820 comes with a vesa, you can fix it on the back of the monitor.
Q3. What's the max RAM of U820? And what's the speed?
A: Hi, the max RAM of U820 is 32GB -- 2x16GB stick, and that of U850 is 64GB -- 2x32GB stick.
